describe
This is a wire that enamelled with super thick insulation.

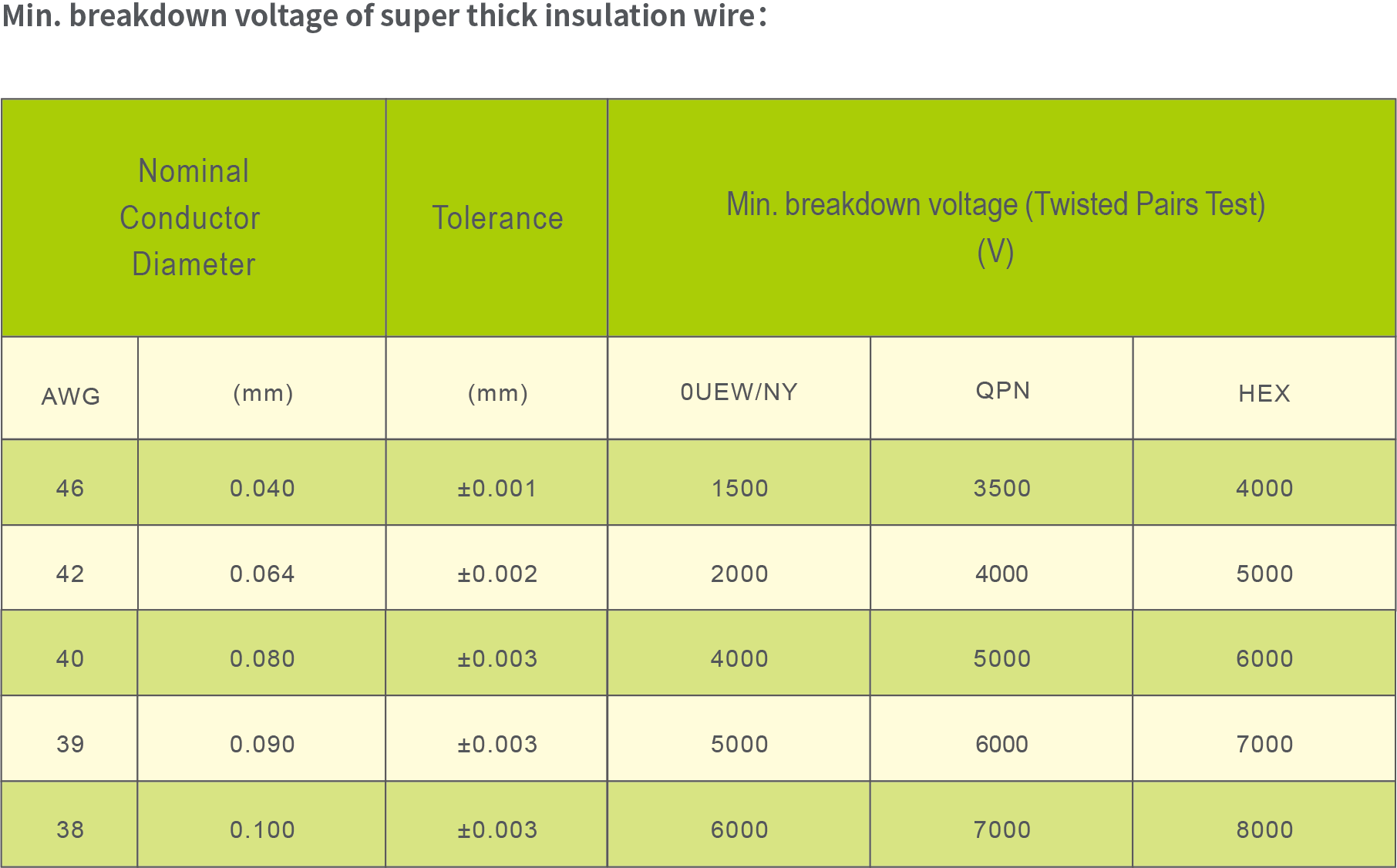

The wires are widely used in high voltage applications.
This kind of wire is well known as 0UEW/NY, QPN and HEX wire.

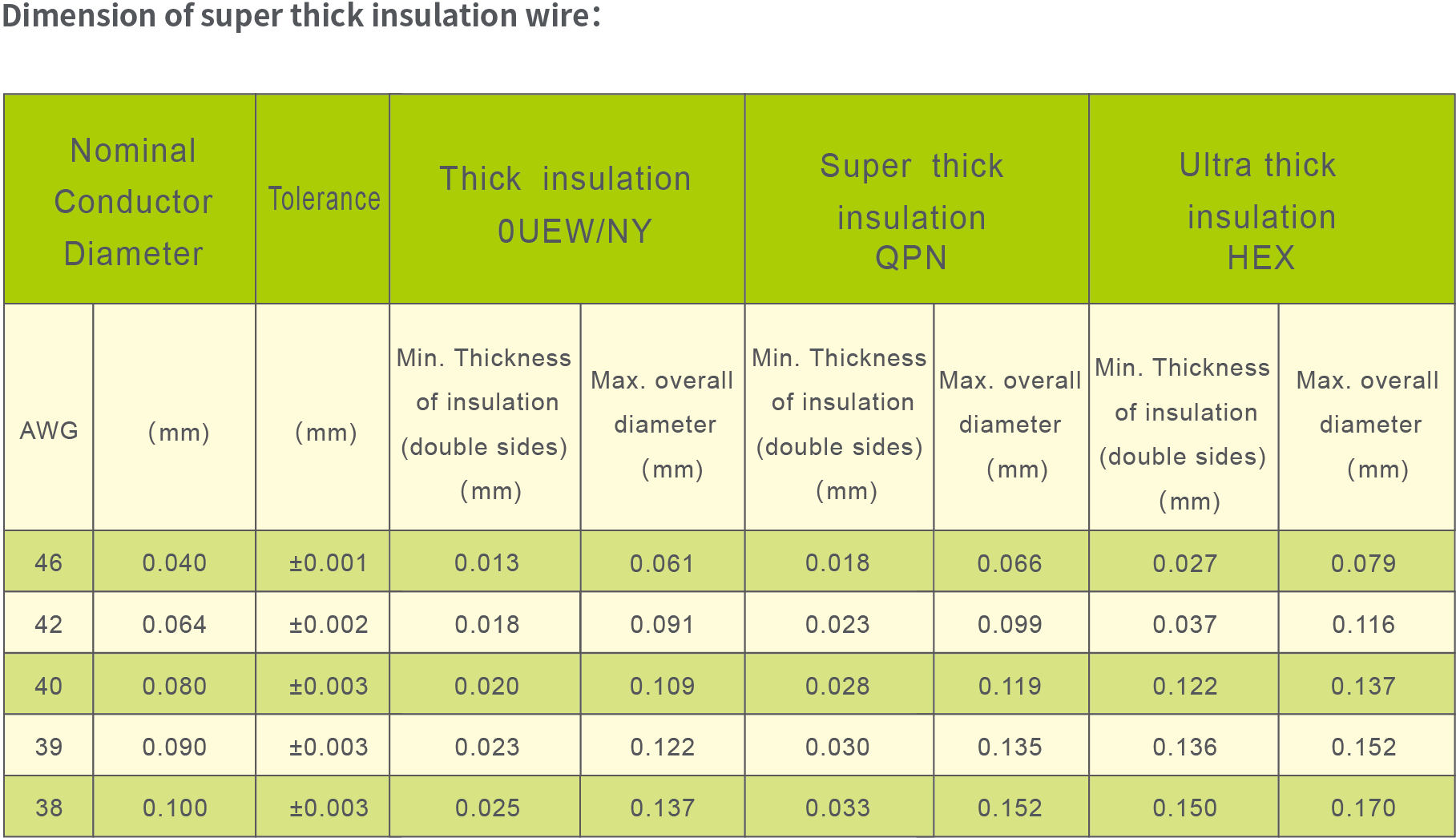

Specification range
AWG50-26/0.028-0.400mm
Heat resistance grade
180、200
Product Standards
characteristic
• Wide diameter range（AWG50-26/0.028-0.400mm）, we are the leading manufacturer in internet
transformer application field.
• We can supply wires with thick, super thick, or ultra thick insulation to meet different
requirement for voltage.
• With excellent function layer, our wire is suitable for automatic winding machine, enable the part
has high thermal, electrical, mechanical, and chemical performance after winding the wire
through magnet ring by automatic machine.
• Thermal class 180 and 200 for option depend on different air-reflow process(peak 260℃).
Thermal class 155 for Wave soldering / pull welding.
• 7 colors available: Natural(N)/Red(R)/Green(G)/Blue(B)/Violet(V)/Black(BK)/Brown(BR).

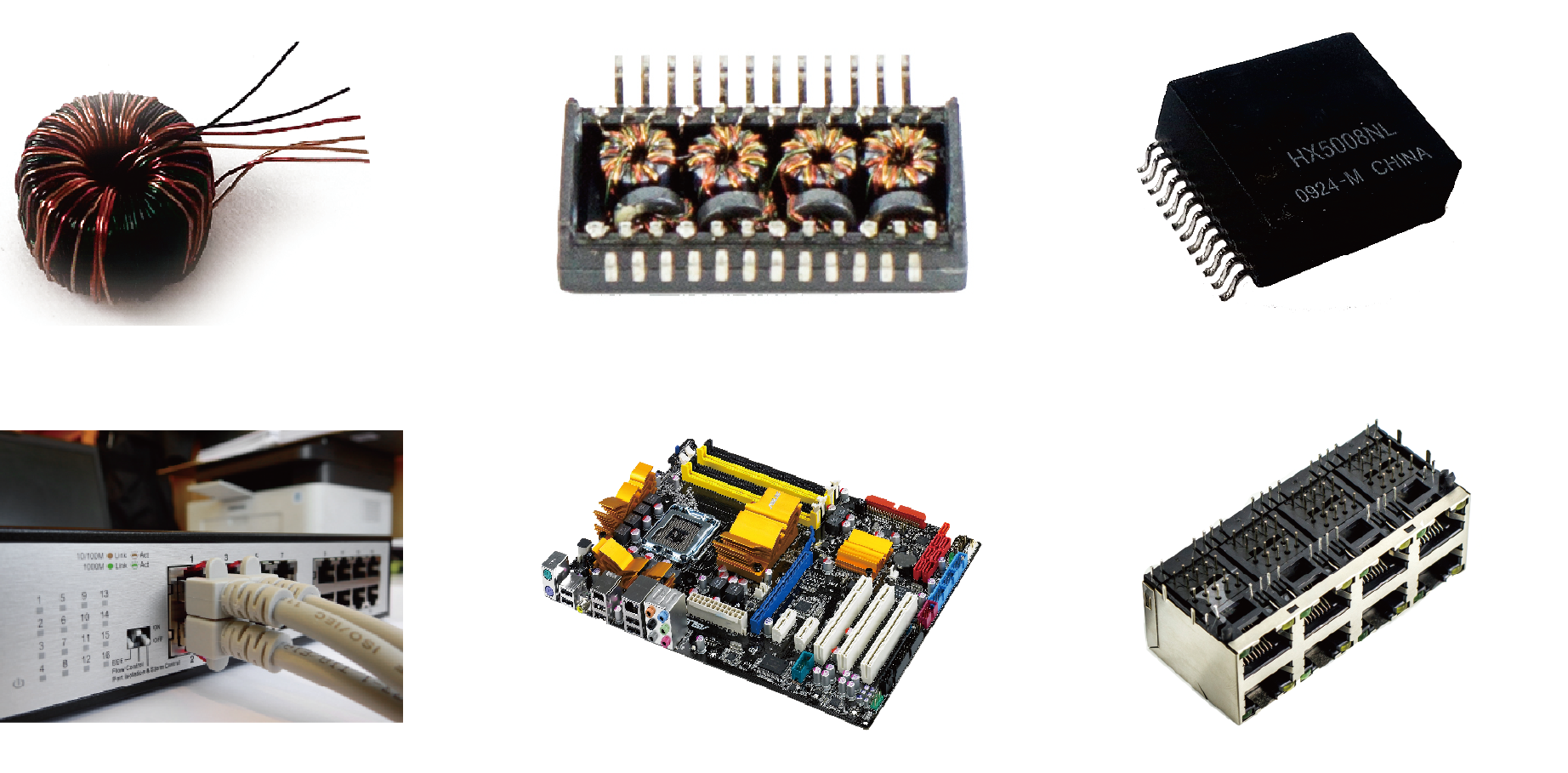

application
Internet transformer/Ethernet filter, wide-band products(xDSL, transformer, exchanger, router), connector, 10G internet transformer/Ethernet filter, module power supply, inductor and micro-transformer
