describe
Polyesterimide overcoated with polyamide enamelled round copper wire.
Specification range
From 0.03mm to 0.95mm(AWG 46 to AWG18)
Heat resistance grade
200,220
Product Standards
IEC 60317-26, 60317-57, NEMA MW 81-C
Or according to customer's requirements.
characteristic
• Excellent insulation
• Very good thermal properties
• High thermal shock temperature, up to 280 ℃
• High softening and breakdown temperature,
up to 400 ℃ (temperature rise method)
• Meet the customer's requirements of air reflow
(peak temperature 265℃) for many times
• Superior mechanical performance and scratch resistance
• Superior solvent resistance
application

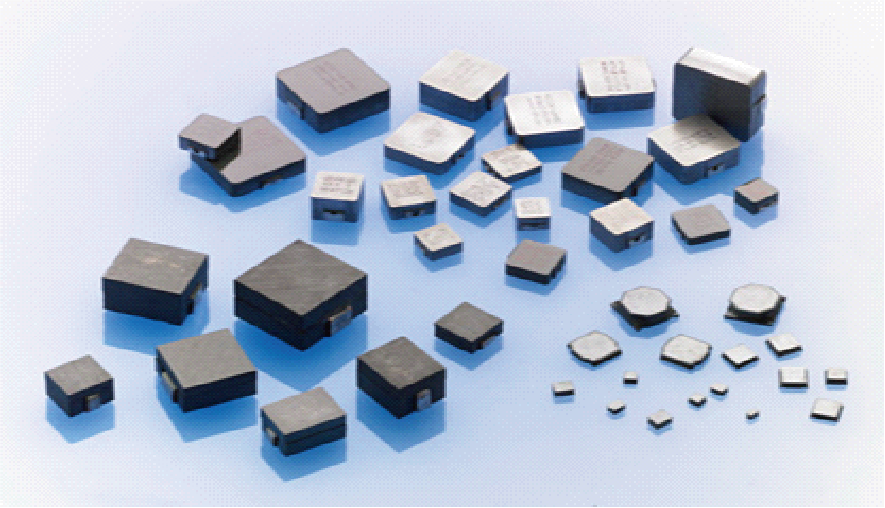

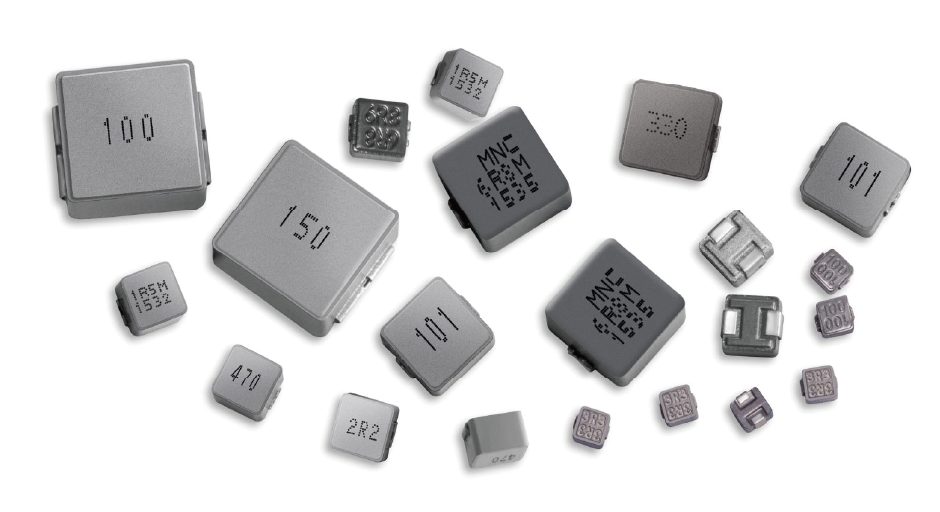

Integrated inductor, special transformer, special micromotor, aviation technology and military electronics.
